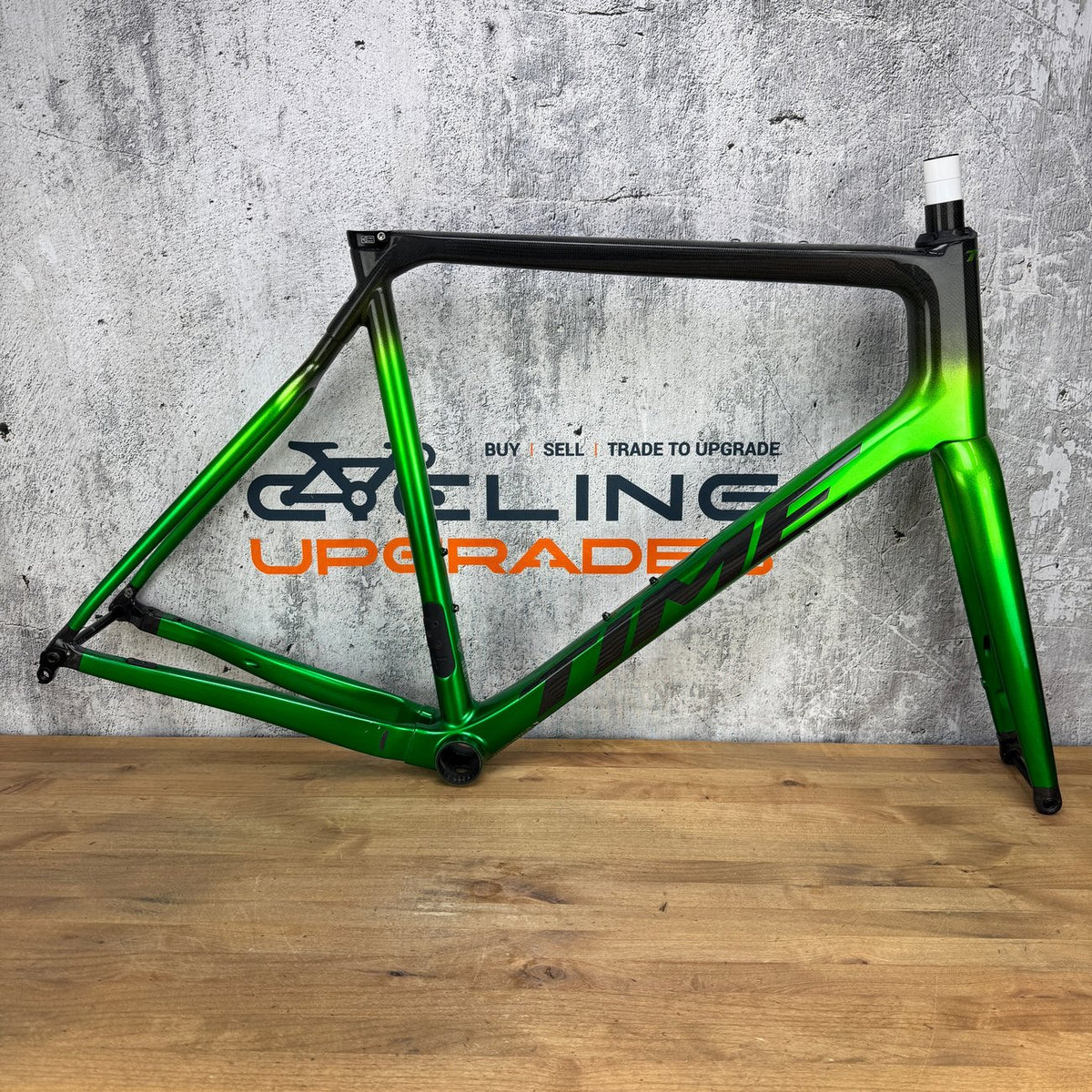

Frame: 2023 Time ADHX 45

Color: Green, and black

Tire Clearance: 700c x 45mm, or 650b x 50mm

Brake type: Flat-Mount disc brake.

Size: XL. 578mm Effective Top Tube. Stack - 603mm. Reach - 395mm. Head tube 188mm. Recommend buyer confirm and research full geometry online.

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: Some chain drop wear and scratches on the chainstays shown in pics #6 & 7. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.

Groupset compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or mechanical setups.

Bottom bracket: BB386EVO bottom bracket shell type (46mm shell diameter, 86mm shell width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

Steerer length: 75mm of steerer above the top tube. 25mm of spacers below the stem plus the headset cover. We may have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.

 Seatpost: 27.2mm diameter. No seatpost included.

Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.

Weight: 1987 grams as pictured with headset, thru axles, frame hardware, etc.

What's included: Frame, fork, headset, rear derailleur hanger, thru axles
