steering gears Saginaw 800 Steering Gearbox 3 Bolt 16:1 Ratio For GM Classic Cars

steering gears Saginaw 800 Steering Gearbox 3 Bolt 16:1 Ratio For GM Classic CarsThis is a newer style Saginaw 800 gearbox that has the smaller 3 4 30 spline input shaft. If you are installing in a Pre 1980 vehicle, you will need a 3 4 30 rag joint (our Part # 62710 S), or you can choose to the 13 16 36 input shaft upgrade for $125. Also choose the fitting style that matches your needs (Seat kit installed for Pre 1980 inverted flare hoses, No seats installed for 1980 Present o ring style hoses, or 6 AN fittings). 16: 1 Variable

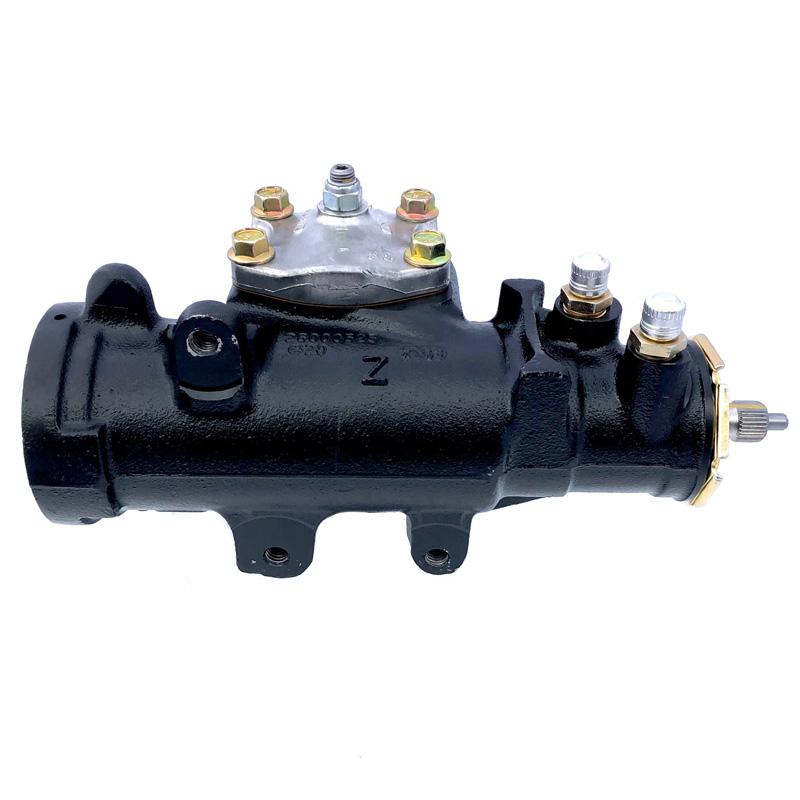

This is a newer style Saginaw 800 gearbox that has the smaller 3/4-30 spline input shaft. If you are installing in a Pre 1980 vehicle, you will need a 3/4-30 rag joint (our Part # 62710-S), or you can choose to the 13/16-36 input shaft upgrade for $125. Also choose the fitting style that matches your needs (Seat kit installed for Pre 1980 inverted flare hoses, No seats installed for 1980- Present o-ring style hoses, or -6 AN fittings). 16:1 Variable Ratio OEM replacement steering gearbox.

This gearbox is fitted with a 25# valve that matches well with the 16:1 variable ratio gearbox. To lean more about steering feel and valve weights take a look at this link: Steering Feel Explained

Specs

• 16:1 Variable Ratio
• 3 bolt mounting pattern
• 3/4-30 spline input shaft
• Valve Weight: 25#

Options

• Fittings: Choose Inverted Flare for Pre-1980 vehicles, O-Ring for 1980-present, or -6AN
• 13/16-36 Spline Input Shaft
• Billet End Cap
• Billet Top Cover with Needle Bearing
