Description
tbg plattformpedale sc-b686 TB21-18PBARRIER STRIP TERMINAL BLOCKS A barrier strip is an interconnect consisting of connectors or screws, and a metal strip. Barrier strip style terminal blocks prevent electrical shorts between positions on the same block as well as adjacent components. This allows for both connection and termination of wires. DIMENSIONS & FEATURES: Number of Poles: 18 Poles Pitch: 0. 56" (14. 3mm) Terminal Spacing: 0. 44" (11. 3mm) A: 10. 69" (271. 5mm) B: 11. 13" (282.

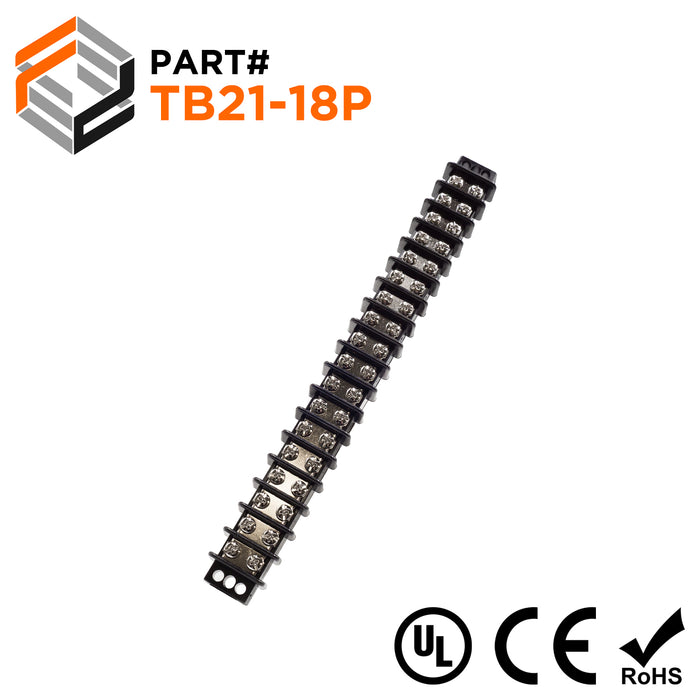

BARRIER STRIP TERMINAL BLOCKS
A barrier strip is an interconnect consisting of connectors or screws, and a metal strip. Barrier strip style terminal blocks prevent electrical shorts between positions on the same block as well as adjacent components. This allows for both connection and termination of wires.
DIMENSIONS & FEATURES:
| Number of Poles: | 18 Poles |
| Pitch: | 0.56" (14.3mm) |
| Terminal Spacing: | 0.44" (11.3mm) |
| A: | 10.69" (271.5mm) |
| B: | 11.13" (282.7mm) |
| Screw: | #8-32 x 5/16"L (Nickel Plated Steel) |
| Material: | Thermoplastic UL94-V0 |
| Electrical Rating: | 300 Volts |
| Amp Rating: | 30AMP |
| Cover Included: | No |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
PRODUCT DRAWING:
