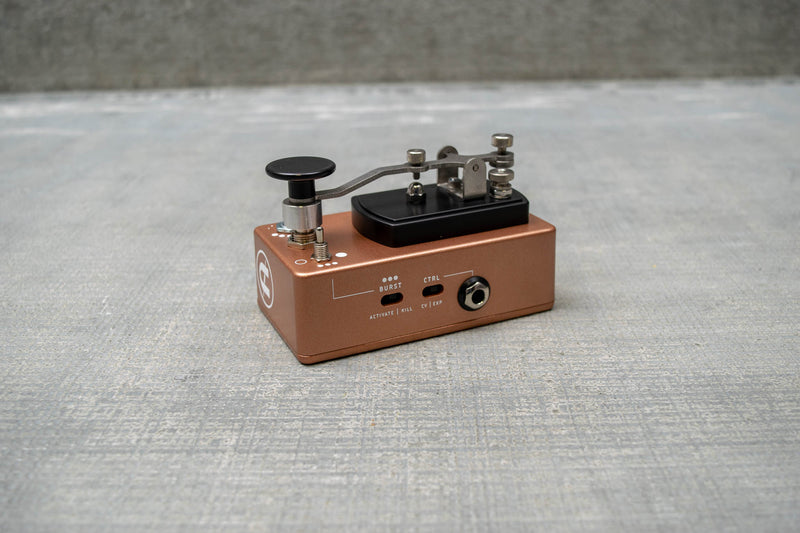

Coppersound Pedals Telegraph V2 Ultimate Killswitch & Stutter System in Carolina Copper

I N T R O D U C I N G  T E L E G R A P H  V 2

- The ultimate killswitch & stutter system
- Three different modes - Kill, Activate, and Burst
- Expression pedal (≤ 10K recommended) and CV rate control via CTRL jack
- Available in multiple finishes
- Latching and momentary options
- Polarity switch to assign Burst mode operation
- Bi-color LED knob indicates rate and status
- Power-free, limited passive operation
- Fail-safe bypass if disconnected from power
- All-metal, proprietary hardware

The successor to our popular Telegraph Stutter, Telegraph V2 is our all new, astronomically
improved killswitch system. Retaining aspects of the original design, Telegraph V2 has been
updated and adorned with our all metal, proprietary hardware. This sturdy (and stylish) upgrade
now allows the player to control the effect with their feet, whilst retaining tactile efficiency for
hand operation. On the inside, we’ve designed a brand new Active circuit from the ground up,
featuring new modes and parameters effectively impossible to attain on the original Stutter. In
addition to the classic Kill and Activate modes, we are excited to present: Burst mode! Burst
mode is an automatic, tremolo-like stutter, adjustable from 110bpm to an astonishingly fast
rate, set by the Burst Knob. In Burst mode, the effect can either be latched (with a quick press of
the key), or momentary when the key is held. For the player that would prefer to only have
momentary mode, we provide an internal dip switch to turn off the latching feature.
Additionally - emulating aspects of the original Kill and Activate modes - the “Polarity” toggle on
the side of the enclosure further enhances the possibilities of Burst mode. When Polarity is set
to “Kill”, your clean signal will pass through until the key is pressed (engaging Burst). When set
to “Activate”, no audio will be heard until the key is pressed, allowing for controlled bursts of
sound! The rate of Burst mode can also be controlled externally by an expression pedal, or
synced to a CV clock source to match the tempo. To cap it all off, Telegraph V2 features an
integrated, power loss fail-safe, inso that if the pedal should lose power, it will automatically
revert to a bypass state. Telegraph V2 was designed to be a unique and creative tool for both
live and studio use, where rugged engineering meets on-the-fly inspiration!

Specs:
- 9V - 2.1mm x 5.5mm Center Negative | 60mA consumption
- In/Out: 1⁄4” Instrument Cable
- EXP: 1⁄4” TRS Cable
- CV: 1⁄4” Instrument cable
- Smart Bypass Equipped
